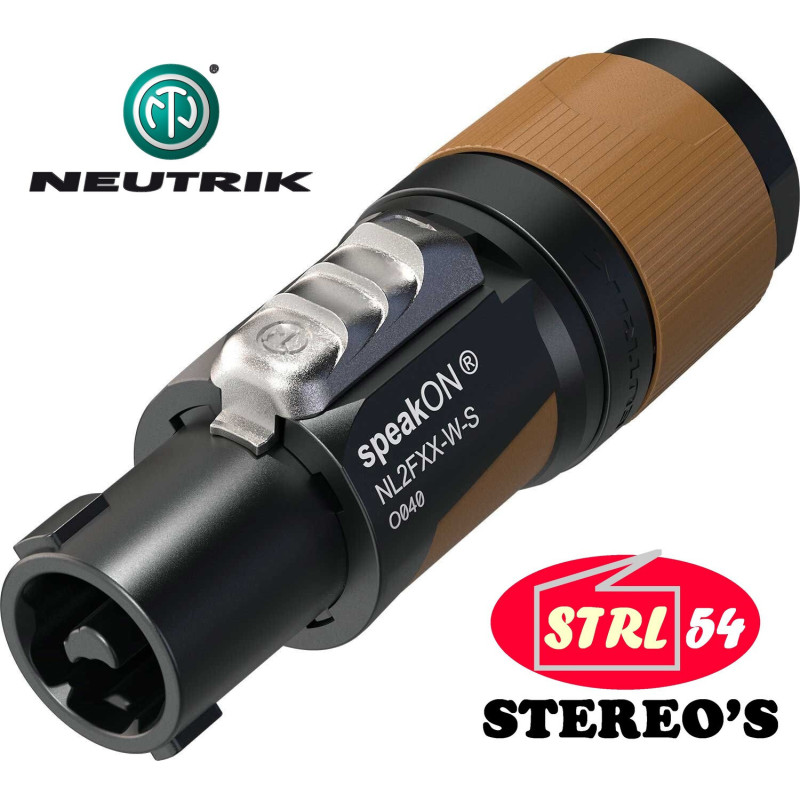

New Neutrik Speakon 2 Pole NL2FXX-W-S Plug Connector Speaker IEC 61984

The new 2-pole Neutrik Speakon cable connector, screw terminal, cable greenhouse for cables from 6 to 12 mm in diameter
Speakon connectors are the industrial standard for speakers. This series of products offers extremely reliable and robust cable connectors with a proven locking system.
speakON connectors feature solid contacts with screw terminals, including protection for stranded wires

Features and Benefits

    Adapts to the 2-pole chassis connector as well as the 4-pole chassis connector (contacts +1/-1)
    Ergonomic design with molded two non -slip components
    Nominal current up to 37 at eff.
    Unique neutrik locking socket and traction discharge for cable diameters from 6 mm to 12 mm
    Certified IEC 61984, therefore accepted as a component of equipment according to IEC 62368-1
    Neutrik quality standard, extremely robust and reliable
    Simple and reliable locking system
    Easy to assemble because the traction discharge locks mechanically with the insert and lines up with the case

    Better protection against folds thanks to a two -component socket
    Weight (including packaging bag): 38 g
    Net weight: 33.8 g

Technical information

Product

Designation

NL2FXX-WS

Series connector

2-plat

Electric

Contact resistance

≤ 2 mΩ

Dielectric rigidity

2.8 kV ac

Isolation resistance

> 10 GΩ (initial)

Number of electrical contacts

2

Nominal Europe characteristic

IEC 61984: 37 A 250 V AC

USA nominal characteristic

UL1977: 35 A 250 V AC

Canada nominal feature

CSA C22.2 No.182.3: 24 A 250 V AC

Attention

This product is absolutely not intended to be used as a sector connector or power supply by power supply
Please note: not designed to interrupt the current

https://www.youtube.com/watch?v=RLFBL7SAHYQ
Please note: this video shows the Assembly of A 4-Pole NL4FXX Connector, but the procedure is the same for the 2-spole NL2FXX Connector.

The New Neutrik 2 Pole Speakon Cable Connector, Screw Terminal Assembly, Chuck Type Strain Relief for Cable Diameters 6 to 12 mm
Speakon Connectors Are the Industry-Standard for Loudspeaker Connections. This product series offers extremely Reliable and Robust Cable Connectors with a proven twist lock system. Speakon Cable Connectors Feature Solid Contacts With Screw-Type Terminals Including A Stranded Wire Protection

Features & Benefits

    Mates with 2-pole Chassis Connector as well as 4-Pole Chassis Connector (contacts +1/-1)
    Ergonomic Design With Slip-Proof Two Component Molded Housing
    Up to 37 A RMS Current Rating
    Unique Neutrik Locking Bushing and Strain Relief for Diameters 6 mm to 12 mm
    IEC 61984 Certified, Thus Accepted as A Component of Equipment ACC. To IEC 62368-1
    SUPERIOR NEUTRIK QUALITY Standard, Extremely Robust and Reliable
    Easy and Reliable Twist Lock System
    Easy to Assemble Becuse the Strain Relief Locks With The Insert Mechanically and Aligns with the housing
    Improved Kink Protection by Two Component Bushing
    Weight (Including Packaging Bag): 38 g
    Net Weight: 33.8 g

Technical Information

Product

Title

NL2FXX-WS

Connector Series

Speakon 2-Pole

Electrical

Contact resistance

≤ 2 mΩ

Dielectric Strength

2.8 kvac

Resistance insulation

> 10 GΩ (initially)

Number of electronical contacts

2

RATING EUROPE

IEC 61984: 37 A 250 V AC

Rating USA

UL1977: 35 A 250 V AC

Rating Canada

CSA C22.2 No.182.3: 24 A 250 V AC

Attention

This product is strictly not intended for use as an ac hand or power supply supply connector!
Deposit: Not for interrupting Current
