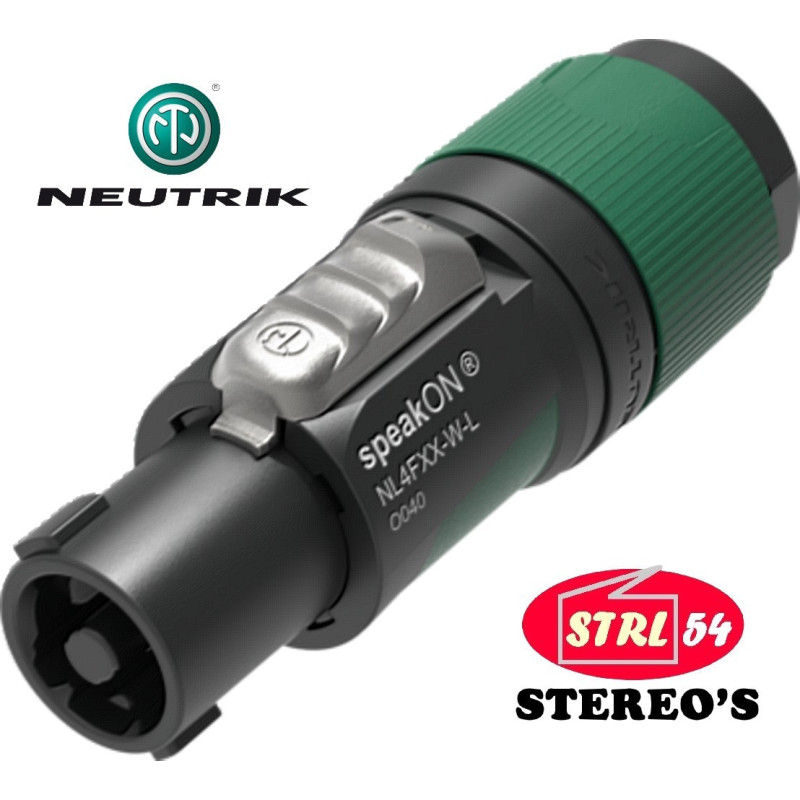

Neutrik Speakon Male 4 Poles NL4FXX-W-S Connector Speaker IEC 61984

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


https://www.youtube.com/watch?v=RLFBL7SAHYQ

The new Neutrik speakON 4-pole cable connector, screw terminal, cable clamp for cables from 6 to 12 mm in diameter
Speakon connectors are the industrial standard for speakers. This series of products offers extremely reliable and robust cable connectors with a proven locking system.
speakON connectors feature solid contacts with screw terminals, including protection for stranded wires

Features and Benefits

    Fits 4-pole chassis connector
    Ergonomic design with molded two non -slip components
    Nominal current up to 37 at eff.
    Unique neutrik locking socket and traction discharge for cable diameters from 6 mm to 12 mm
    Certified IEC 61984, therefore accepted as a component of equipment according to IEC 62368-1
    Neutrik quality standard, extremely robust and reliable
    Simple and reliable locking system
    Easy to assemble because the traction discharge locks mechanically with the insert and lines up with the case

    Better protection against folds thanks to a two -component socket
    Weight (including packaging bag): 41 g
    Net weight: 37g

Technical Information

Product TitleNL4FXX-WLConnector SeriesspeakON 4 pole
Electrical Contact resistance≤ 2 mΩDielectric Strength2.8 kvacResistance insulation> 10 GΩ (initially)Number of electrical contacts4RATING EUROPEIEC 61984: 37 A 250 V ACRating USAUL1977: 35 A 250 V ACRating CanadaCSA C22.2 No.182.3: 24 A 250 V ACAttentionThis product is strictly not intended for use as an AC or DC power supply connector!
Deposit: Not for interrupting Current
Mechanical OD Cable10 - mmLifetimetypically 5,000 mating cyclesWiresize ( mm )1.5 – 4 mmWiresize (AWG)17 – 11AWGLocking deviceTwist lockTerminationscrew type terminals
Material Contact platingAgContactsCopper AlloyInsertPolyamide (PA6.6)Locking elementZinc diecastShellPolyamide (PA6) / TPEStrain reliefPolyketoneBushingPolypropylene / TPE
Environmental Temperature range-33°C to +80°CProtection classIP20Flammability acc. to UL94V-0

The new Neutrik speakON 4-pole cable connector, screw terminal, cable clamp for cables from 6 to 12 mm in diameter Speakon connectors are the industrial standard for speakers. This series of products offers extremely reliable and robust cable connectors with a proven locking system. speakON connectors feature solid contacts with screw terminals, including protection for stranded wires     Unique neutrik locking socket and traction discharge for cable diameters from 6 mm to 12 mm     Certified IEC 61984, therefore accepted as a component of equipment according to IEC 62368-1     Easy to assemble because the traction discharge locks mechanically with the insert and lines up with the case     Better protection against folds thanks to a two -component socket This product is strictly not
