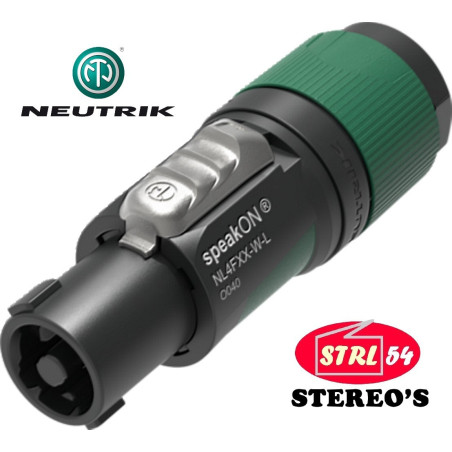

Neutrik Speakon Male 4 Pole NL4FXX-W-S Plug Connector Speaker IEC 61984
6,01 €
TTC
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
https://www.youtube.com/watch?v=RLFBL7SAHYQ
The new Neutrik speakON 4-pole cable connector, screw terminal, cable clamp for cables from 6 to 12 mm in diameter
Speakon connectors are the industrial standard for speakers. This series of products offers extremely reliable and robust cable connectors with a proven locking system.
speakON connectors feature solid contacts with screw terminals, including protection for stranded wires
Features and Benefits
Fits 4-pole chassis connector
Ergonomic design with molded two non -slip components
Nominal current up to 37 at eff.
Unique neutrik locking socket and traction discharge for cable diameters from 6 mm to 12 mm
Certified IEC 61984, therefore accepted as a component of equipment according to IEC 62368-1
Neutrik quality standard, extremely robust and reliable
Simple and reliable locking system
Easy to assemble because the traction discharge locks mechanically with the insert and lines up with the case
Better protection against folds thanks to a two -component socket
Weight (including packaging bag): 41 g
Net weight: 37g
Technical Information
Product
TitleNL4FXX-WLConnector SeriesspeakON 4 pole
Electrical
Contact resistance≤ 2 mΩDielectric Strength2.8 kvacResistance insulation> 10 GΩ (initially)Number of electrical contacts4RATING EUROPEIEC 61984: 37 A 250 V ACRating USAUL1977: 35 A 250 V ACRating CanadaCSA C22.2 No.182.3: 24 A 250 V ACAttentionThis product is strictly not intended for use as an AC or DC power supply connector!
Deposit: Not for interrupting Current
Deposit: Not for interrupting Current
Mechanical
OD Cable10 - mmLifetimetypically 5,000 mating cyclesWiresize ( mm )1.5 – 4 mmWiresize (AWG)17 – 11AWGLocking deviceTwist lockTerminationscrew type terminals
Material
Contact platingAgContactsCopper AlloyInsertPolyamide (PA6.6)Locking elementZinc diecastShellPolyamide (PA6) / TPEStrain reliefPolyketoneBushingPolypropylene / TPE
Environmental
Temperature range-33°C to +80°CProtection classIP20Flammability acc. to UL94V-0
The new Neutrik speakON 4-pole cable connector, screw terminal, cable clamp for cables from 6 to 12 mm in diameter
Speakon connectors are the industrial standard for speakers. This series of products offers extremely reliable and robust cable connectors with a proven locking system.
speakON connectors feature solid contacts with screw terminals, including protection for stranded wires
Unique neutrik locking socket and traction discharge for cable diameters from 6 mm to 12 mm
Certified IEC 61984, therefore accepted as a component of equipment according to IEC 62368-1 Easy to assemble because the traction discharge locks mechanically with the insert and lines up with the case Better protection against folds thanks to a two -component socket This product is strictly not
20 Produits
Fiche technique
- Colours
- Black and green
- Type
- Connector Speakon
- Brand
- Neutrik
- Manufacturer Part Number
- NL4FXX-W-S
- Country of Origin
- Liechtenstein
- EAN
- 7613187017612
- fit design
- NL4FXX-WS
